Truck Topper Gas Props


GAS PROPS - Lift Cylinders - SUSPA


Truck Cap Gas Props

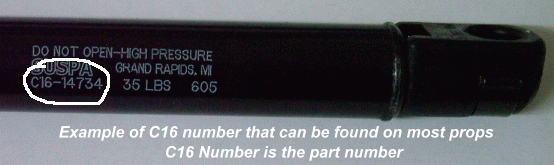

  • The C 16 number can be found on the cylinder end - it is printed on the prop in white (see picture below)
  • For Measurements:
     EXT =
    Length from the center of one ball mount location (one end) to the other while the prop is fully extended
    COMP = Length from the center of one ball mount location to the other while the prop is fully compressed.
    ADDITIONAL MEASUREMENT TIP: To ensure you get the best fit for your application, the compressed measurement should come from the ball mounts this prop will be mounted to - when the unit is closed. If it's a topper door, climb in the bed of the truck, close the topper door and measure center ball mount to center ball mount. Relying on the props compressed measurement alone could result in difficulties finding a good fitting replacement.
    Truck Cap Lift Cylinder Diagram
  • All measurements in the Length column are the approximate overall length
  • If you do not find your Gas Prop listed below, we may be able to special order it.
  • Applications for:
    1. Compact Truck Cap Doors
    2. Full Size Truck Cap Doors
    3. Fiberglass Tonneau Covers
    4. Radius Side Access Doors
    5. Gas Prop Ball Mounts
    6. Undercover Tonneau Covers
    7. Clevis Ends (open prop end mounts)
      Clevis Ends

Finding C16 number

How to install pistons

NOTE: When installing gas props, make sure the cylinder is pointed down. (See picture above) This allows for the shaft to stay lubricated and last longer.

Down Size (Compact) and Mini Truck Cap Doors

Prop Number
Length
Poundage
Measurements
C 16-06389
 TAG #: 51629
14"
24 LB.
(13.98" EXT
8.9 " COMP)

$19.95
C 16-10176
14"
35 LB.
(13.98" EXT
8.9 " COMP)

$19.95
C 16-09461
14"
40 LB.
(13.98" EXT
8.9 " COMP)

$19.95
C 16-08584
14"
60 LB.
(13.98" EXT
8.5" COMP)

$19.95
C 16-21066
 C 16-02621
 TAG #: 67763
14.53"
24 LB.
(14.53" EXT
9.61" COMP)

$19.95
C 16-04154
 TAG #: 67764
14.53"
24 LB.
(14.45" EXT
8.98" COMP)

$19.95
C 16-11543
 C 16-23873A
 TAG #: 82662
15"
40 LB.
(14.53" EXT
10" COMP)

$19.95
C 16-22127
15"
50 LB.
(15.08" EXT
10" COMP)

$19.95

Full Size Truck Cap Doors

gas prop
(picture of actual item)

Full Size Truck Cap Doors

Prop Number
Length
Poundage
Measurements
C 16-08941
 C 16-21945
 TAG #: 62700
16"
28 LB.
(15.71" EXT
9.8 " COMP)

$19.95
C 16-09209
 C 16-14195
 TAG #: 62388
16"
38 LB.
(15.71" EXT
9.8 " COMP)

$19.95
C 16-19568 *
 C 16-22330
 TAG #: 82906
16"
40 LB.
(15.67" EXT
9.37" COMP)

$19.95
C 16-22331 *
 Stabilus Lift O Mat #: 14269
16"
45 LB.
(15.7" EXT
9.4" COMP)

$19.95
C 16-15208
 C 16-14194
 C 16-18792
 TAG #: 56900 or
 51632
16"
45 LB.
(15.7" EXT
9.4" COMP)

$19.95
C 16-21949
16"
60 LB.
(15.98" EXT
9.92" COMP)

$19.95
C 16-15645
17"
20 LB.
(17.13" EXT
11.22 " COMP)

$19.95
C 16-02622
 TAG #: 51627
17"
28 LB.
(17.13" EXT
11.22 " COMP)

$19.95
C 16-02648
 TAG #: 63957
17"
35 LB.
(17.13" EXT
11.22 " COMP)

$19.95

C 16-14732
 C 16-20195A
C 16-23292A
with Angled End
 TAG #: 51186 or 83181 or 63403 or 89454

17"
35 LB.
(17.13" EXT
10.83" COMP)

$19.95
C 16-06874
 TAG #: 57380
17"
40 LB.
(17.13" EXT
11.22 " COMP)

$19.95
C 16-04270
 C 16-22999
 TAG #: 62389 or 86667
17"
45 LB.
(17.13" EXT
11.22 " COMP)

$19.95
C 16-04445
 TAG #: 56894
17"
55 LB.
(17.13" EXT
11.22 " COMP)

$19.95
C 16-06867
 TAG #: 78281
17"
60 LB.
(17.13" EXT
10.83" COMP)

$19.95
C 16-08789
17"
80 LB.
(17.13" EXT
11.22 " COMP)

$19.95
C 16-21974
 C 16-06889
17"
97 LB.
(17.13" EXT
11.22 " COMP)

$19.95
C 16-20877*
 TAG #: 69787
22"
37 LB.
(22.87" EXT
13.03 " COMP)

$29.95

C 16-20651
 C 16-14734

 C 16-33313
with Angled End
TAG #: 68272 or 51630

19"
40 LB.
(18.70" EXT
10.83" COMP)

$21.95

* with Angled Ends on Rod End

Fiberglass Tonneau Covers

topper pistons
(picture of actual item)

Fiberglass Tonneau Covers

Prop Number
Length
Poundage
Measurements
C 16-11253
17"
135 LB.
(17.13" EXT
10.83" COMP)

$34.95
C 16-23833
18"
100 LB.
(18.15" EXT
11.8" COMP)

$24.95
C 16-23834
18"
120 LB.
(18.15" EXT
11.8" COMP)

$44.95
C 16-08568
20"
20 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-08316
 TAG #: 51628
20"
40 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-08260
 TAG #: 78124
20"
60 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-08053
 TAG #: 56433 or 57381
20"
80 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-19222
 C 16-18466
 TAG #: 83297 or 57001
20"
90 LB.
(19.7" EXT
11.8" COMP)

$24.95
C 16-08054
 TAG #: 57000
20"
100 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-17796
 TAG #: 82552
20"
110 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-08055
 TAG #: 78327 or 78124
20"
120 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-08376
 TAG #: 78442
20"
135 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-17566
 TAG #: 82085
20"
150 LB.
(19.69" EXT
12.2" COMP)

$24.95
C 16-21478
20"
180 LB.
(19.69" EXT
12.2" COMP)

$29.95
C 16-16142
 C 16-21219
 TAG #: 21219 or 71143
26"
60 LB.
(26.34" EXT
16.5" COMP)

$29.95
C 16-12492
26"
74 LB.
(26.34" EXT
16.1" COMP)

$29.95
C 16-13334
 TAG #: 51633
26"
87 LB.
(26.34" EXT
16.5" COMP)

$29.95
C 16-12666
 TAG #: 57002
26"
100 LB.
(26.34" EXT
16.5" COMP)

$29.95
C 16-12181
26"
150 LB.
(26.34" EXT
16.5" COMP)

$29.95
C 16-21081
29"
26 LB.
(28.9" EXT
16.1" COMP)

$31.95
C 16-17261
31"
60 LB.
(30.5" EXT
17.13" COMP)

$39.95
C 16-17262
31"
70 LB.
(30.5" EXT
17.13" COMP)

$39.95
C 16-18001
31"
80 LB.
(30.5" EXT
17.13" COMP)

$39.95
C 16-20303
32"
45 LB.
(32.8" EXT
19.29 " COMP)

$44.95
C 16-21671
 C 16-21334
Clevis end on rod end
TAG #: 74960 or 71632
35"
60 LB.
(36.07" EXT
19.93" COMP)

$39.95
C 16-15952
 C 16-19821
 TAG #: 61245
36"
40 LB.
(35.43" EXT
19.69 " COMP)

$39.95
C 16-10198
36"
60 LB.
(35.43" EXT
19.69 " COMP)

$39.95
C 16-10944
36"
80 LB.
(35.43" EXT
19.69 " COMP)

$39.95
C 16-15953
36"
100 LB.
(35.43" EXT
19.29 " COMP)

$39.95

Clevis Ends for Gas Props

Clevis Ends 6 MM
6 MM Thread
(most common on 20" or shorter props)
Clevis Ends - 8 MM
8 MM Thread
(most common on 26" or longer props)

(picture of actual item)

Description: These Clevis Ends replace the ends on your prop.
 They are used to mount props to studded mounts (instead of the usual ball mount).

  • Two different sizes to choose from
  • Replaces the existing ball mounts on the gas prop

Price: $9.95 each


Radius Side Access Doors (windoors)

lift cylinder
(picture of actual item)

Radius Side Access Doors (windoors)
Side Access Doors

Prop Number
Length
Poundage
Measurements
C 16-03288
9"
13 LB.
(9" EXT
6" COMP)

$19.95
C 16-03213
10"
13 LB.
(9.84" EXT
7.09" COMP)

$19.95
C 16-10334
10"
22 LB.
(9.84" EXT
7.09" COMP)

$19.95
C 16-10610
 TAG #: 65832
12"
13 LB.
(11.57" EXT
7.64" COMP)

$19.95
C 16-03795
12"
24 LB.
(12.2" EXT
8.66" COMP)

$19.95
C 16-09903
 TAG #: 62387
12"
24 LB.
(11.57" EXT
8.03" COMP)

$19.95
C 16-13313
12"
30 LB.
(12.2" EXT
8.66" COMP)

$19.95
C 16-10788
12"
35 LB.
(12.2" EXT
8.66" COMP)

$19.95
C 16-11028
12"
40 LB.
(12.2" EXT
8.66" COMP)

$19.95
C 16-12104
12"
50 LB.
(12.2" EXT
8.66" COMP)

$19.95
C 16-12106
12"
80 LB.
(12.2" EXT
8.66" COMP)

$19.95

C 16-22360
C16-04464A

13"
35 LB.
approx. (13.03" EXT
8.11" COMP)

$19.95


Undercover Tonneau Cover Gas Props/Lift Cylinders

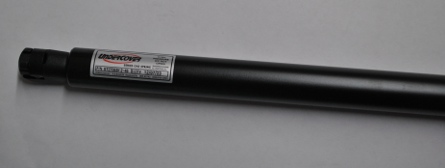

Undercover Gas Props - Image 1
(picture of actual item)

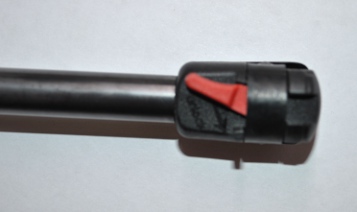

Undercover - Gas Props - Image 2
(Quick release end for easy removal of your Undercover tonneau cover)

Description: Undercover Tonneau Cover Gas Props/Lift Cylinders

  • Pre installed mounting brackets on each end
  • Length: 27" (ball mount to ball mount extended
  • Poundage: approx. 45-50 LBS.
  • Only recommended for Undercover tilting tonneau covers

Price:$34.95
